CD79B - Antibodies - The Human Protein Atlas


	Antibody HPA009178	Antibody HPA044107	Antibody CAB009751

ANTIBODY INFORMATION
Provider	Atlas Antibodies Sigma-Aldrich	Atlas Antibodies Sigma-Aldrich	Santa Cruz Biotechnology
Product name	HPA009178	HPA044107	sc-25605
Host species	Rabbit	Rabbit	Rabbit
Clonalityⁱ The antibodies are designated mAB for monoclonal and pAb for polyclonal.	pAb	pAb	pAb
Concentration	0.0575 mg/ml	0.071 mg/ml	Not known
Purity	Affinity purified using the PrEST-antigen as affinity ligand	Affinity purified using the PrEST-antigen as affinity ligand	Protein A/G
Other gene matchⁱ Genes, excluding the target gene, to which the antigen sequence of the antibody is >80% identical.	ENSG00000285947 - ENSG00000285947 [88%]
Released in versionⁱ The release of the Human Protein Atlas in which the antibody was first published.	3.1	20.0	3.1
Referencesⁱ References to publications in which the antibody has been used.	1
Validation summaryⁱ All assays through which the antibody has been validated. Here are more detailed descriptions of the IHC, ICC, WB and PA assays. The pie-charts indicate degree of validation in the different assays (IHC, ICC, WB and PA.	ICC IHC WB PA	N/A ICC IHC WB PA	N/A ICC IHC WB N/A PA
IMMUNOCYTOCHEMISTRYⁱ Immunocytochemistry is used to validate the antibody staining and for assessing and validating the protein expression pattern in selected human cell lines.
Validationⁱ Results of validation by standard or enhanced validation. Standard validation is based on concordance with available experimental gene/protein characterization data in the UniProtKB/Swiss-Prot database. Standard validation results in scores Supported, Approved or Uncertain. Enhanced validation is performed using either siRNA knockdown, tagged GFP cell lines or independent antibodies. For the siRNA validation the decrease in antibody-based staining intensity upon target protein downregulation is evaluated. For the GFP validation the signal overlap between the antibody staining and the GFP-tagged protein is evaluated. For the independent antibodies validation the evaluation is based on comparison of the staining of two (or more) independent antibodies directed towards independent epitopes on the protein. For all cases except the siRNA validation, an image representative of the antibody staining pattern is shown. For the siRNA validation, a box plot of the results is shown.	Approvedⁱ Reliability scores for antibodies used in immunocytochemistry are set by comparing the staining pattern in cell lines with external experimental evidence for protein localization. The scores are termed Supported, Approved and Uncertain. The subcellular location is partly supported by literature or no literature is available. Immunofluorescent staining of human cell line REH shows localization to plasma membrane.	N/A	N/A

Antibody dilution	human cell lines: A-431 fixed with PFA, dilution: 1:30 human cell lines: REH fixed with PFA, dilution: 1:29 human cell lines: U2OS fixed with PFA, dilution: 1:30
IMMUNOHISTOCHEMISTRYⁱ Immunohistochemistry is used for validating antibody reliability by assessing staining pattern in 45 normal tissues. Validation scores include Enhanced, Supported, Approved and Uncertain.
Validationⁱ Results of validation by standard or enhanced validation based on assessment of antibody performance in 45 normal tissues. Standard validation results in scores Supported, Approved or Uncertain. An image representative of the antibody staining pattern is shown. Enhanced validation results in the score Enhanced and includes two methods: Orthogonal validation and Independent antibody validation. For orthogonal validation, representative images of high and low expression are shown. For independent antibody validation, four images of each independent antibody are displayed.	Supportedⁱ Immunohistochemistry is used for validating antibody reliability by assessing staining pattern in 45 normal tissues. Validation scores include Enhanced, Supported, Approved and Uncertain. Immunohistochemical staining of human lymph node shows strong cytoplasmic positivity in lymphoid cells outside reaction centra and weak to moderate in reaction center cells. Lymph node	Enhanced - Orthogonal Antibody staining mainly consistent with RNA expression data across 44 tissues. HIGH EXPRESSION Appendix RNA expression: 65.6 nTPM LOW EXPRESSION Cerebral cortex RNA expression: 0.3 nTPM	Supportedⁱ Immunohistochemistry is used for validating antibody reliability by assessing staining pattern in 45 normal tissues. Validation scores include Enhanced, Supported, Approved and Uncertain. Immunohistochemical staining of human lymph node shows distinct cytoplasmic positivity in cells of the germinal center corona. Lymph node

Retrievalⁱ Antigen retrieval is a method used to restore/retrieve the epitope (antibody bidning region) of the target protein, cross-linked, and thus masked, during tissue preserving fixative treatment of the tissues.	HIER pH6	HIER pH6	HIER pH6
Antibody dilution	1:200	1:100	1:75
Literature conformityⁱ Conformance of the expression pattern with available gene/protein characterization data in scientific literature and data from bioinformatic predictions. UniProt is used as the main source of gene/protein characterization data and when relevant, available publications and other sources of information are researched in depth. Extensive or sufficient gene/protein data requires that there is evidence of existence on a protein level and that a substantial quantity of published experimental data is available from literature and public databases. Limited protein/gene characterization data does not require evidence of existence on a protein level and refers to genes for which only bioinformatic predictions and scarce published experimental data is available.	Consistent with extensive gene/protein characterization data.	Consistent with extensive gene/protein characterization data.	Partly consistent with extensive gene/protein characterization data.
RNA consistencyⁱ Consistency between immunohistochemistry data and consensus RNA levels is divided into five different categories: i) High consistency, ii) Medium consistency, iii) Low consistency, iv) Very low consistency, and v) Cannot be evaluated.	Medium consistency between antibody staining and RNA expression data.	High consistency between antibody staining and RNA expression data.	Low consistency between antibody staining and RNA expression data.
WESTERN BLOTⁱ A Western blot analysis is performed on a panel of human tissues and cell lines to evaluate antibody specificity. For antibodies with unreliable result a revalidation using an over-expression lysate is performed.
Validationⁱ Western Blot is used for quality control of the polyclonal antibodies generated in the project. After purification, the antibodies are used to detect bands in a setup of lysate and different tissues. The result is then scored Enhanced, Supported, Approved, or Uncertain. Enhanced validation includes five different methods: Genetic validation, Recombinant expression validation, Independent antibody validation, Orthogonal validation and Capture MS validation.	Enhanced - Recombinant expressionⁱ This method is based on over-expression of the target protein in a cell line preferably not expressing the target protein. The staining of the antibody is evaluated by Western blot through analyses of samples from cell lysates with and without recombinant expression of the target protein. The results show no or weak band from the unmodified cell line lysate and a strong band in the cell line with recombinant expression. Band of predicted size in kDa (+/-20%) with additional bands present. Lane 1: Marker [kDa] 250, 130, 95, 72, 55, 36, 28, 17, 10 Lane 2: Negative control (vector only transfected HEK293T lysate) Lane 3: Over-expression Lysate (Co-expressed with a C-terminal myc-DDK tag (~3.1 kDa) in mammalian HEK293T cells, LY421857) Target mass (kDa): 35.3, 26.1, 26, 14	Uncertainⁱ The staining of an antibody is evaluated by Western Blot through analysis of samples from different cell lysates. A supportive score is given if band(s) of predicted size in kDa (+/-20%) is detected. Single band larger than predicted size in kDa (+20%) but partly supported by experimental and/or bioinformatic data. Analysis performed using a standard panel of samples. 250 130 95 72 55 36 28 17 10	Uncertainⁱ The staining of an antibody is evaluated by Western Blot through analysis of samples from different cell lysates. A supportive score is given if band(s) of predicted size in kDa (+/-20%) is detected. No bands detected. Analysis performed using a standard panel of samples. 219 111 83 48 32 26 17

Antibody dilution	1:250	1:250	1:500
PROTEIN ARRAY

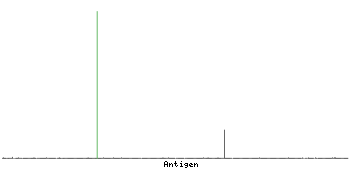

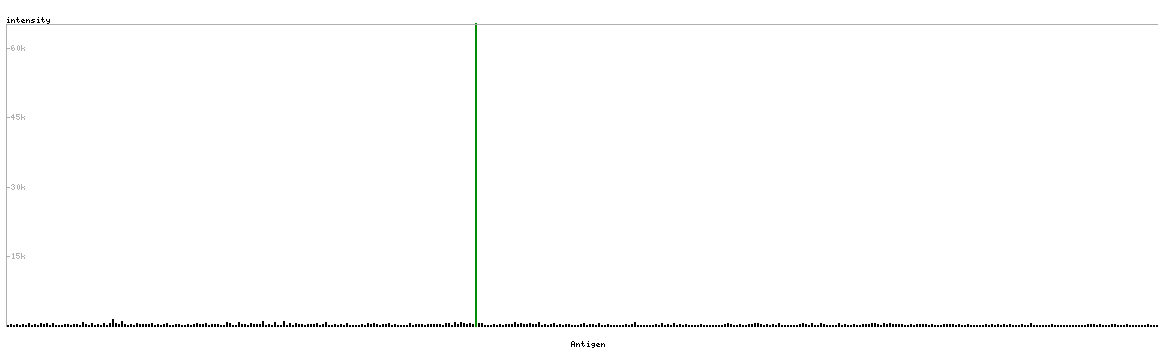

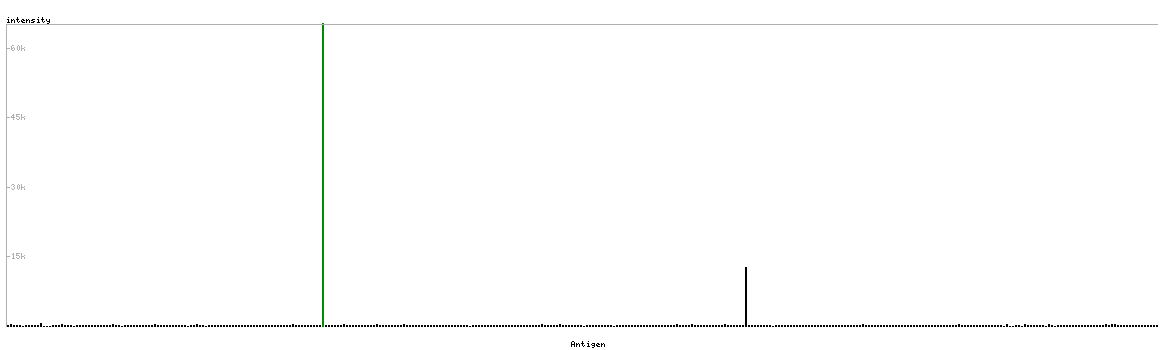

Validationⁱ A protein array containing 384 different antigens including the antibody target is used to analyse antibody specificity. Depending on the array interaction profile the antibody is scored as Supported, Approved, or Uncertain.	Supported Pass with single peak corresponding to interaction only with its own antigen. Antibody specificity analysis with protein arrays. Predicted and matching interactions are shown in green.	Approved Pass with quality comment low specificity (binding to 1-2 antigens >15% and <40%). Antibody specificity analysis with protein arrays. Predicted and matching interactions are shown in green.	N/A

Antibody dilution	1:3000	1:3000
RELEVANT PUBLICATIONS
	CRKL overexpression promotes cell proliferation and inhibits apoptosis in endometrial carcinoma Cai L et al Oncol Lett 2017;13(1):51-56 Application: IHC
ANTIGEN INFORMATION
Antigen	Recombinant protein fragment	Recombinant protein fragment	Recombinant protein
Length (aa)	48	125
Antigen sequence	`DKDDSKAGMEEDHTYEGLDIDQTATYEDIVTLRTGEVKWSVGEHPGQE`	`RNPKGSACSRIWQSPRFIARKRGFTVKMHCYMNSASGNVSWLWKQEMDEN PQQLKLEKGRMEESQNESLATLTIQGIRFEDNGIYFCQQKCNNTSEVYQG CGTELRVMGFSTLAQLKQRNTLKDG`
Matching transcripts	CD79B-201 - ENSP00000006750 [100%] CD79B-202 - ENSP00000245862 [100%] CD79B-203 - ENSP00000376544 [100%]	CD79B-201 - ENSP00000006750 [100%] CD79B-203 - ENSP00000376544 [100%]
Other gene matchⁱ Genes, excluding the target gene, to which the antigen sequence of the antibody is >80% identical.	ENSG00000285947 - ENSG00000285947 [88%]
Matching mouse transcripts	ENSMUSP00000048239 [96%] ENSMUSP00000129029 [96%] ENSMUSP00000128325 [29%] ENSMUSP00000146749 [29%]	ENSMUSP00000048239 [57%] ENSMUSP00000129029 [57%] ENSMUSP00000151217 [24%] ENSMUSP00000107513 [23%]
ANTIGEN VIEWⁱ The Protein Browser The ProteinBrowser displays the antigen location on the target protein(s) and the features of the target protein. Transcript names and schematic transcript structures including exons, introns and UTRs for the different isoforms are shown on top, and can be used to switch between the structures for the different splice variants. At the top of the view, the position of the antigen (identified by the corresponding HPA identifier) is shown as a green bar. A yellow triangle on the bar indicates a <100% sequence identity to the protein target. Below the antigens, the maximum percent sequence identity of the protein to all other proteins from other human genes is displayed, using a sliding window of 10 aa residues (HsID 10) or 50 aa residues (HsID 50). The region with the lowest possible identity is always selected for antigen design, with a maximum identity of 60% allowed for designing a single-target antigen (read more). The curve in blue displays the predicted antigenicity i.e. the tendency for different regions of the protein to generate an immune response, with peak regions being predicted to be more antigenic.The curve shows average values based on a sliding window approach using an in-house propensity scale. (read more). Signal peptides (turquoise) and membrane regions (orange) based on predictions using the majority decision methods MDM and MDSEC are also displayed. Low complexity regions are shown in yellow and InterPro regions in green. Common (purple) and unique (grey) regions between different splice variants of the gene are also displayed (read more), and at the bottom of the protein view is the protein scale.

CD79B-201 CD79B-202 CD79B-203

The Protein Browser
